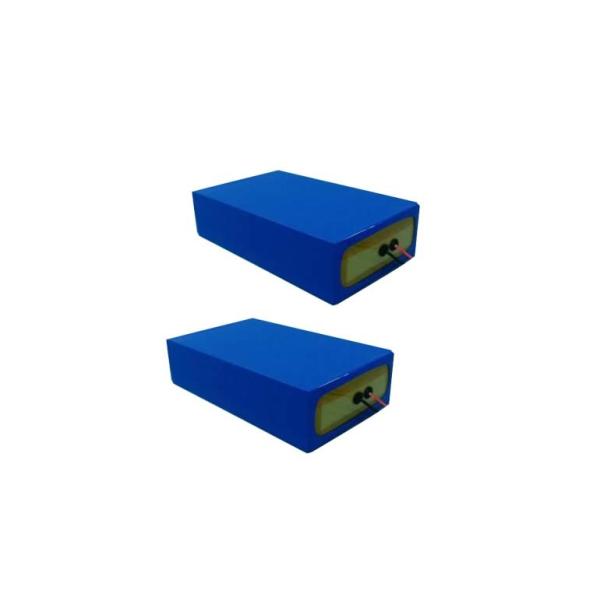

Rechargeable LifePO4 Lithium Battery Energy Saving Hi Power Lithium Batteries

Categories	LifePO4 Lithium Battery
Brand Name:	HYZZ
Model Number:	HY00085
Certification:	ISO9001, CE, CB, UN38.3
Place of Origin:	Changsha, China
Payment Terms:	L/C, T/T
Supply Ability:	10,000 PCS per month
Delivery Time:	22 days
Packaging Details:	foam, wooden box / foam, carton, tray
Name:	LifePO4 Lithium Battery
Model:	24V 20Ah
L x W x H:	264mmX164mmx64mm
Application:	Wheelchairs and scooters
C1 Cycle life Cycle life:	1500 Times
Charging method:	CC/CV

Contact Now

Add to Cart

Rechargeable LifePO4 Lithium Battery Energy Saving Hi Power Lithium Batteries

Model: 24V20Ah

Dimension: 264mmX164mmx64mm

Features: iron lithium 81160227/8S; charge cut-off voltage:29.2V; discharge cut-off voltage: 20V; working current:10A; weight:5.6KG

How to choose a high quality lithium battery:

1, A grade battery cell, with full capacity for each battery cell;

2, BMS: water proof, anti static, over current protection, over voltage protection, with sealed case;

3, IP55 water proof case, plastic or steel case available by customer's requirement. MOQ: 1pieces.

In order to guarantee A grade battery cell:

1, High grade raw material;

2, 12hours & 3 cycles charging/discharging test.

Applications :
♦ Wheelchairs and scooters
♦ Solar/wind energy storage
♦ Back-up power for small UPS
♦ Golf trolleys & buggies
♦ Electric bikes

			Number	HY00085
			Version	A0
	HYLF/24/20-001 Battery pack specification		Date	2019-5-7
1．Basic characteristics			Product picture
Product name	Industrial lithium battery		Batteries:Lithium iron phosphate battery
product code	HYLF/24/20-001
L x W x H	264mmX164mmx64mm
Rated voltage	24VSeries structure
Rated Capacity	20Ah
Serialization	8S
Internal resistance	≤100mΩ
Discharge cutoff voltage	18.4V		Shell color □ Sub black □ Bright gray □ +Fruit green + bright gray two-color □ White+ black ☑ Blue thermoplastic film Charging and discharging interface □ Wall terminal □ Anderson □ Navigation plug ☑ Positive and negative lines □ Pole □ Hardware contact
Charging protection voltage	28.8V
Max.charging voltage	29.2V
Max. charging current	10A
Maximum discharge current	10A
Peak current	20±2 2S
Rated discharge current	5A
Charging method	CC/CV
weight	5.6Kg
Operating temperature	Charging	0～45℃
	Discharge	-20～55℃
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months	-10～35℃
C1 Cycle life Cycle life	1500 Times
price	RMB:¥ 00.00
Delivery period	25 Working day
