| Categories | Outdoor LCD Digital Signage |
|---|---|
| Brand Name: | TOPADKIOSK/OEM |
| Model Number: | TPK-OF4365 |
| Certification: | CE&Rohs&FCC |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | negotiate |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Delivery Time: | 10-15days after receipt of your payment |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Pnale size: | 43 inch |
| Brightness: | 1500-5000nits |
| Panel: | 50000hours |
| Material: | Galvanized steel with anti-reflect glass |
| Max Resolution: | 1080*1920 |
| Touch screen: | optional |
| Air condition: | for optional |
| Connectivity: | LAN, WIFI, 3G(Optional) |

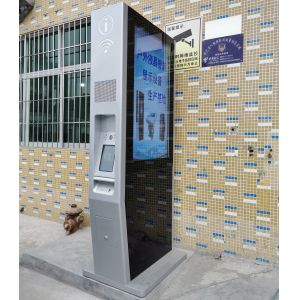

High Definition Portable Outdoor Advertising LCD Screens 43 Inch
Free Standing
※ Professional Outdoor kiosk with excellent design;
※ Industrial level 43” brand new LG original panel with LED
backlight;
※ Fully meet outdoor IP55 usage standard application;
※ 49”, 55", 65” size also available;
※ Support industrial level fan ventilating, ensure reliable
running;
※ Support anti-reflection glass, make sure best view experience;
※ Support high brightness of 2000 nits, ensure readable under
sunlight;
※ Built in auto-temperature control system, can turn off the kiosk
automatically;
※ Intelligent air-looping system, can protect the kiosk panel
against the so called “blackout”;
※ Support sensitive 10 points capacitive touch (optional)
※ Support Windows OS or Android OS;
※ Support to play program directly from USB or through networking;
※ Support digital signage software HD-DS as a total solution;
※ Industrial level design, support 24/7 working
| Technical Parameter for LCD Panel | Panel Size | 43" 46" 50" 55" 65" 84" | |
| Aspect Ratio | 16:9 | ||
| Active Area | 1209.6 (W)x680.4(H) mm | ||
| Max. Resolution | 1920x1080 | ||
| Dot Pitch | 0.63 (H) x 0.63(W)mm | ||
| Number of Color | 16.7M | ||
| Brightness | 2000cd/m2-5000cd/m2 | ||
| Contrast Ratio | 3500:1 | ||
| Responsive Time | 6ms | ||
| Panel Life | above 50000 hours | ||
| Storage Medium | Flash memory card, SD Card | 2gb to 36gb for the capacity | |
Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2 (DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) | |
| Audio formats | MP3 | ||
| Photo formats | JPG | ||
| OSD Language | English, Chinese, French, German, Italian, Spanish, Arabic | ||
| Audio output | stereo L/R, 5W*2, 8Ω | ||
| Power supply | AC 110V - 240V, 50/60HZ | ||
| Storage Temperature | -7 to 65 Celsius degree | ||
| Video interface | VGA HDMI CVBS S-Video | ||
| Android standard | A20/RK3288 | Quad-Core / Octa-Core ,Android 5.1 or above | |
PC Standard Specification | Processor | J1900/I3/I5/I7 | |
| Mainboard | H81 | ||
| HDD | S-ATAII 500GB / 16MB / 7200RPM/120GB SSD | ||
| Memory | DDR3-1333 8GB | ||
| PC I/O Connectors | 2 x USB, 2xPS / 2.1 x RJ45, 1x Line-in, 1x Earphone, 1xMicrophone, 1xVGA | ||
| Network | Built-in Realtek RTL8103EL | ||
| Audio | Built-in HD audio 8 audio system | ||
Waterproof case | Waterproof grade | IP65 | |
| Installs way | The ground installation | ||
| Protective glass | 6mm AR safety glass | ||
| Temperature control system | Intelligent and changes in temperature integration air conditioning | ||
| Touch system | Waterproof, prevent strong light touch | ||



Application
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar,
Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop,
Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model
houses, Sales offices, the entrance of elevator, etc

|
